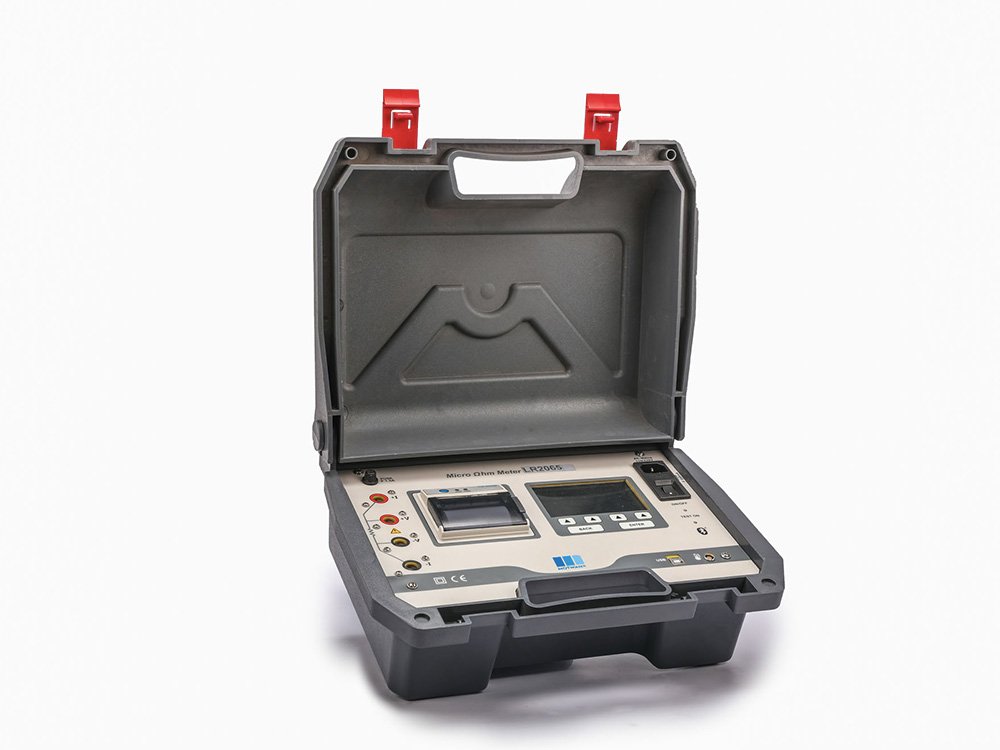

Micro Ohm Meter: LR-2065
Motwane’s Digital Micro Ohmmeter, LR -2065, comes with a maximum 10A DC current injection which is useful for the measurement of very low resistances (as low as 0.1 μΩ) in micro ohms. Mains cum rechargeable battery operated LR-2065, works on the proven principle of four wire measurements.
enabled
Motwane’s Digital Micro Ohmmeter, LR -2065, comes with a maximum 10A DC current injection which is useful for the measurement of very low resistances (as low as 0.1 μΩ) in micro ohms. Mains cum rechargeable battery operated LR-2065, works on the proven principle of four wire measurements. The LR-2065 has 4½ digits LED display with a resistance measurement range from 2mΩ to 20KΩ, with a minimum resolution of 0.1μΩ. The pulse mode operation is an additional feature. The LR-2065 can be used for measuring the resistance of cables, wires, PCB relay, LT bus-bar, graphite electrodes, quality testing of resistive components, low capacity motors, etc.
Application
The high precision micro ohmmeter is used for measuring accurate low resistance with high accuracy, thus making it a reliable tool for quality assurance and easy operations. It comes in handy for quick maintenance checks for process industries. Typically It is very useful in design, test, maintenance, QC/QA, and production. Typical applications include the measurement of:
Cables
Electrodes
Relays
Components
Bus Bars
PC Boards
Low rating motors & contactors
Transformers weld joints
Shunts
Features
- 4½ digits LED display with annunciations
- Resolution of 0.1 μΩ on 2 mΩ range
- Mains cum battery operated (rechargeable Ni-Cd)
- High measurement current of 10A for faster settling of measured values on low resistance
- True four wire resistance measuring technique eliminates lead resistance errors
- Pulse mode with auto hold operation
- Low battery indication to prevent the deep discharge of the internal recharging battery
Electrical Specification
At 25◦C ± 3◦C 55 % RH ± 10% Temp. Co : 150ppm/◦C
| Range | Resolution | Max Current | Accuracy ±(%rdg + Digits) |
| 2 mΩ | 0.1 μΩ | 10 A | ± 0.03%±4 |
| 20 mΩ | 1 μΩ | 1 A | |
| 200 mΩ | 10 μΩ | 0.1 A | |
| 2000 mΩ | 100 μΩ | 0.01 A | |
| 20 Ω | 1 mΩ | 0.1 A | |
| 200 Ω | 10 mΩ | 0.01A | |
| 2000 Ω | 100 mΩ | 1 mA | |
| 20 kΩ | 1 Ω | 0.1 mA |
*Current supplied through a battery.
General Specification
Warm-up time to stated accuracy: 2 to 5 minutes
Over range: Blinking Zero Display
Dimension (D*W*H) : Approx. 340mm X 258mm X 145mm
Net weight: Approx. 4KG with batteries
Standard Accessories
- Test leads with GP Kelvin clip
- Test leads with GP Crocodile clip
- Mains cord
- Instruction manual
Optional
- Test lead is 10 meters long with a heavy duty Crocodile clip.
- ‘C’ clamp with 10 meters long leads.
- Test leads with heavy duty bond testing probe.
